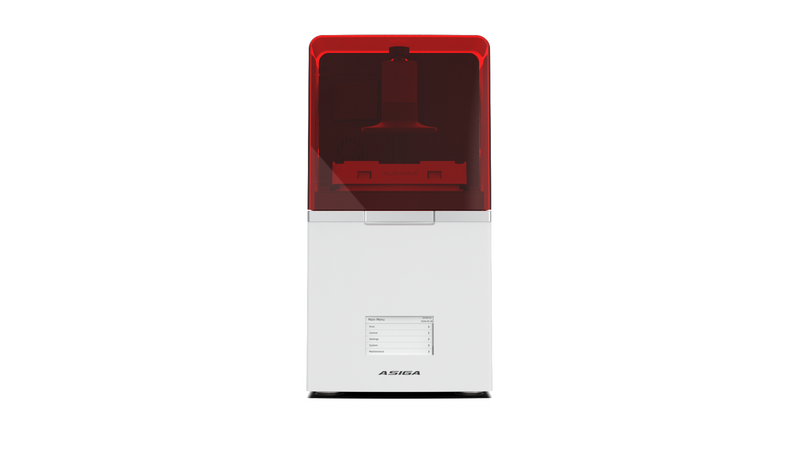

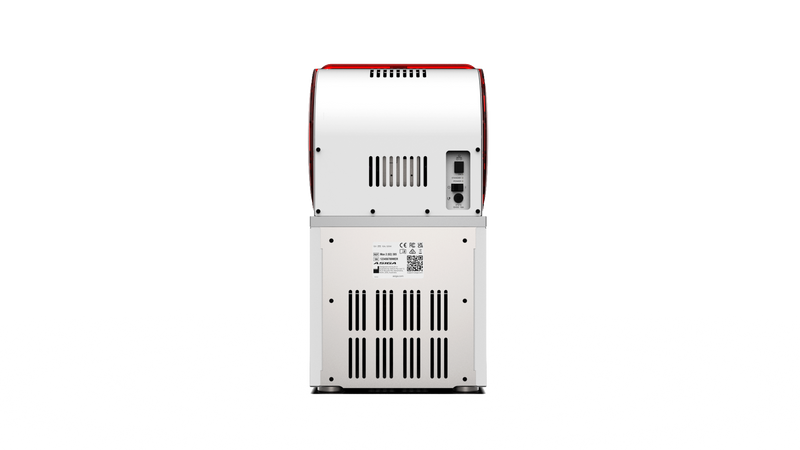

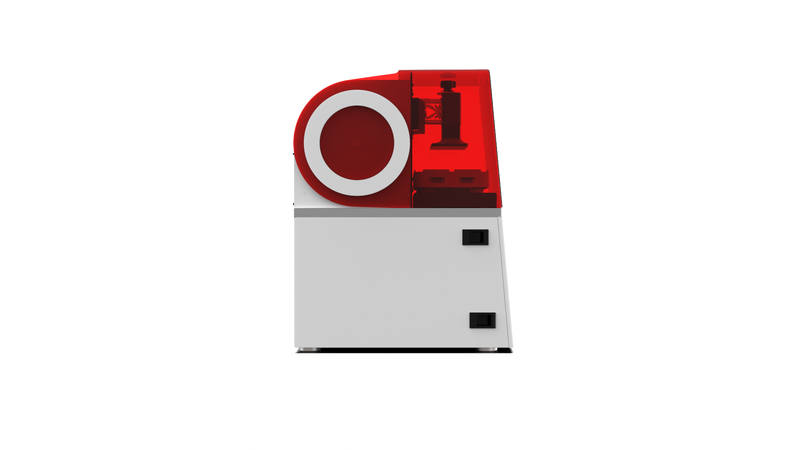

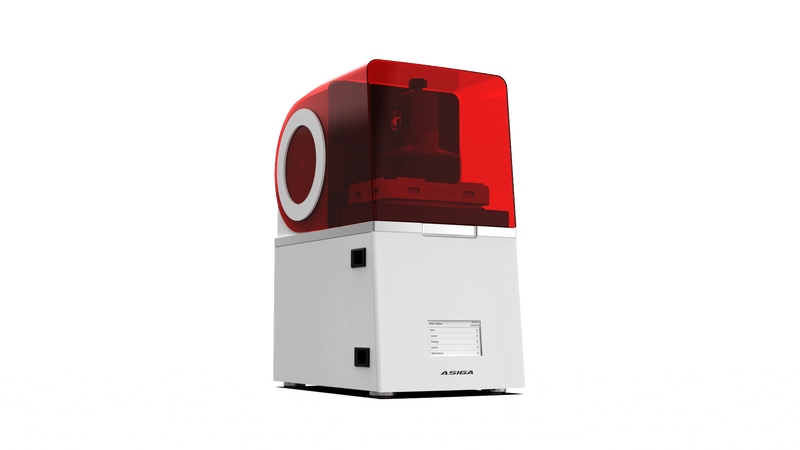

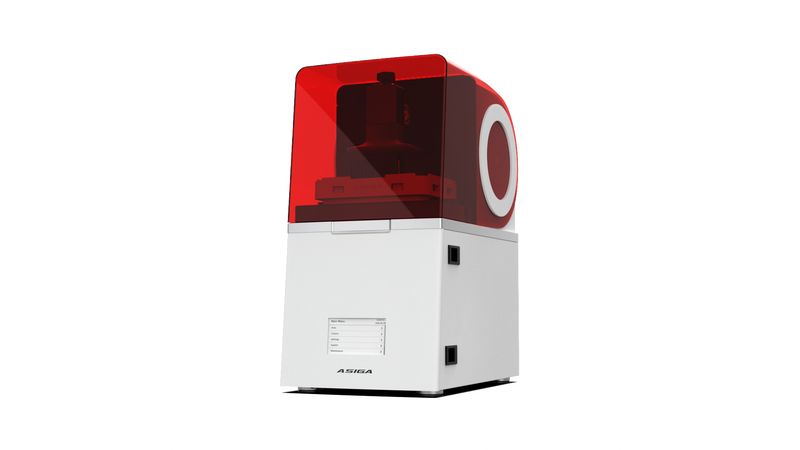

Max X35 Plus UV - Asiga
Max X35 Plus UV - Asiga
Max X35 Plus UV - Asiga
Max X35 Plus UV - Asiga
Max X35 Plus UV - Asiga
Max X35 Plus UV - Asiga

Delivery time

May require an additional 2 week handling time.

Max X35 Plus UV - Asiga

by Asiga
$12,990.00 - $12,990.00
$12,990.00
$12,240.00
$12,240.00 - $12,240.00
$12,240.00

Max X35 Plus UV (385nm)

The ultimate in flexibility and precision.
Max X Plus Series - Asiga

Technical specifications

Technical specifications
SpecificationMax X27 Plus UV$12,240.00Regular price $12,990.00Max X35 Plus UV (this product)$12,240.00Regular price $12,990.00Max X43 Plus UV$12,240.00Regular price $12,990.00
Build volume X, Y, Z51.8 × 29.2 × 75mm
2.04 × 1.15 × 2.95 inches		67.2 × 37.8 × 75mm
2.65 × 1.49 × 2.95 inches		82.3 × 46.4 × 75mm
3.24 × 1.83 × 2.95 inches
Pixel resolution27µm35µm43µm
TechnologyDLP
LED Wavelength385nm (high power UV LED)
(Available in 405nm, longer lead times expected for 405nm option. Email info@phoenix-3d.com for more info)
Transparent Mode™Available on 385nm printers only
Material CompatibilityAsiga materials, 100% Open Material System — use any suitable third party material
SoftwareAsiga Composer software. Lifetime updates included
File InputsSTL, SLC, PLY, STM (Asiga Stomp file format)
Network CompatibilityWifi, Wireless Direct, Ethernet
Power Requirements100 to 240 VAC, 50/60 Hz, ≤2 Amps
System Sizing260 × 400 × 510mm / 21.5 kg   10.2 × 15.7 × 20 inches / 47.4 lb
Packed Sizing400 × 510 × 630mm / 23.5 kg   15.7 × 20 × 24.8 inches / 51.8 lb
Warranty12 months manufacturer's warranty

What's included

Included with your Max X35 Plus UV is everything you need to get started.

  • Max X35 Plus UV 3D printer
  • Calibration toolkit
  • Material of your choice1kg of Asiga or Phoenix 3D material.
  • Build tray
  • Asiga Flash curing chamber
  • Composer software
  • Unlimited lifetime technical support
