PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga
PRO 4K65 UV - Asiga

Delivery time

May require an additional 2 week handling time.

PRO 4K65 UV - Asiga

by Asiga
$24,990.00 - $24,990.00
$24,990.00
$23,240.00
$23,240.00 - $23,240.00
$23,240.00

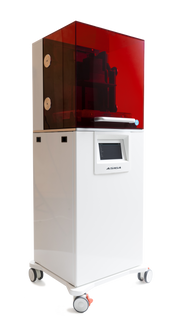

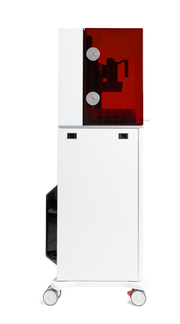

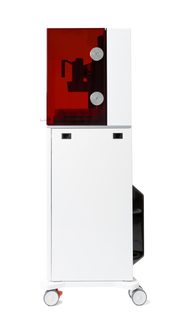

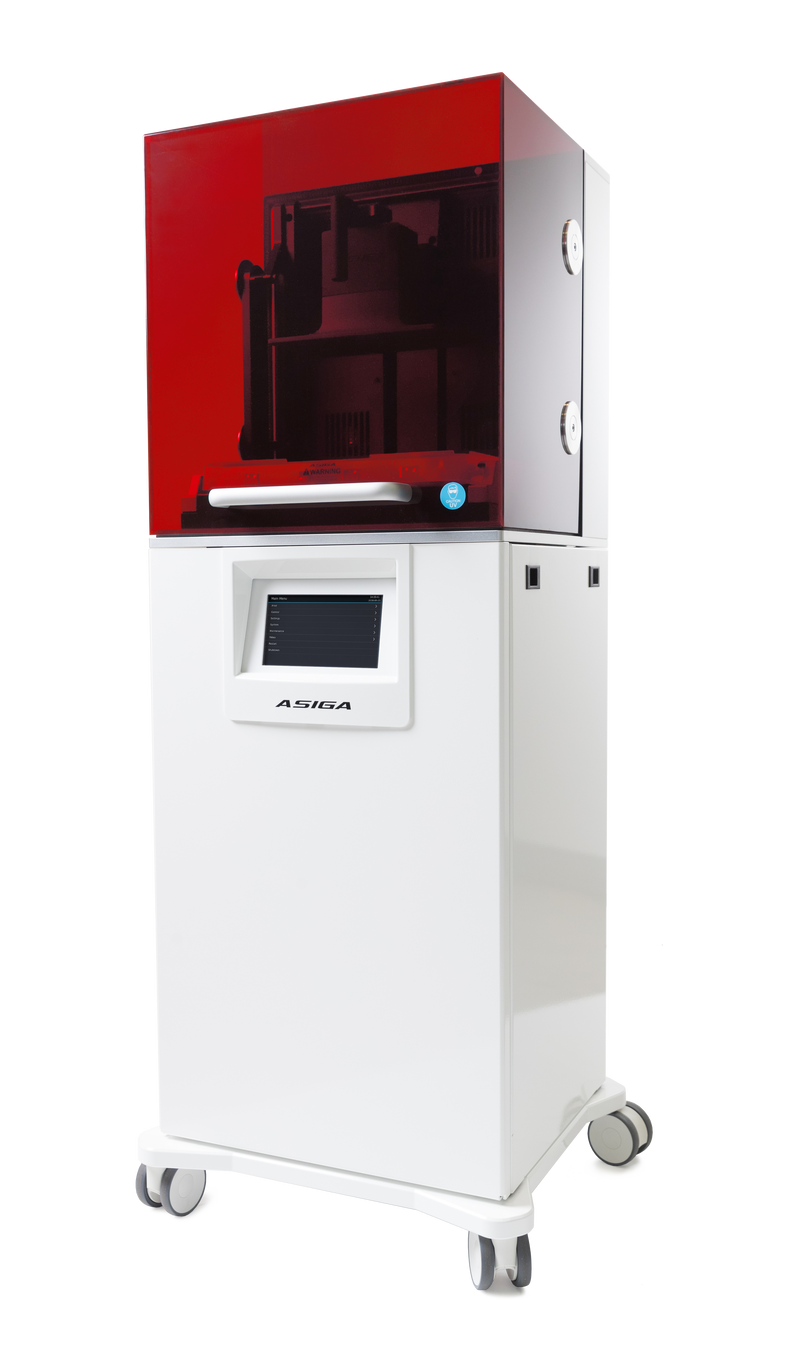

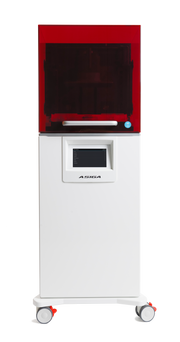

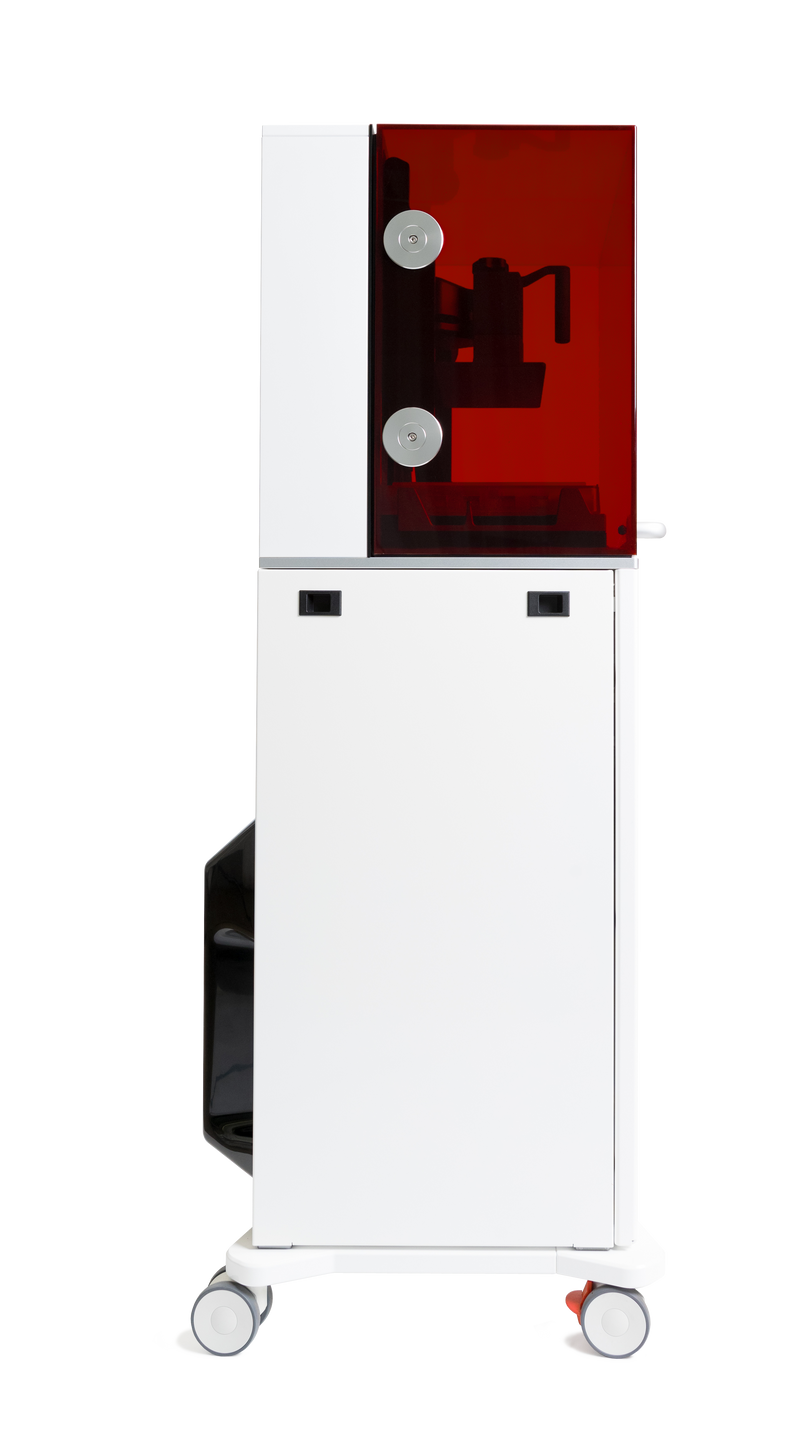

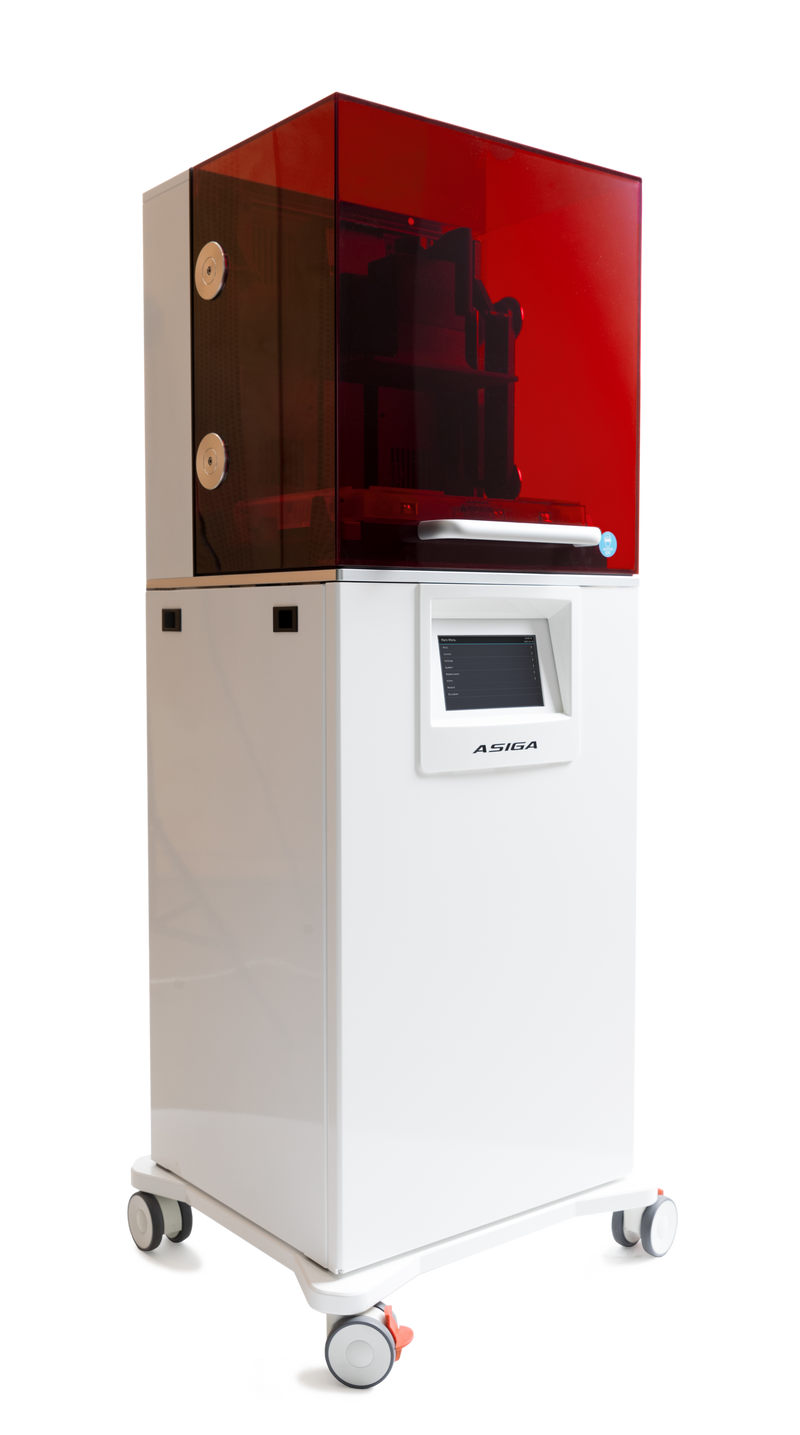

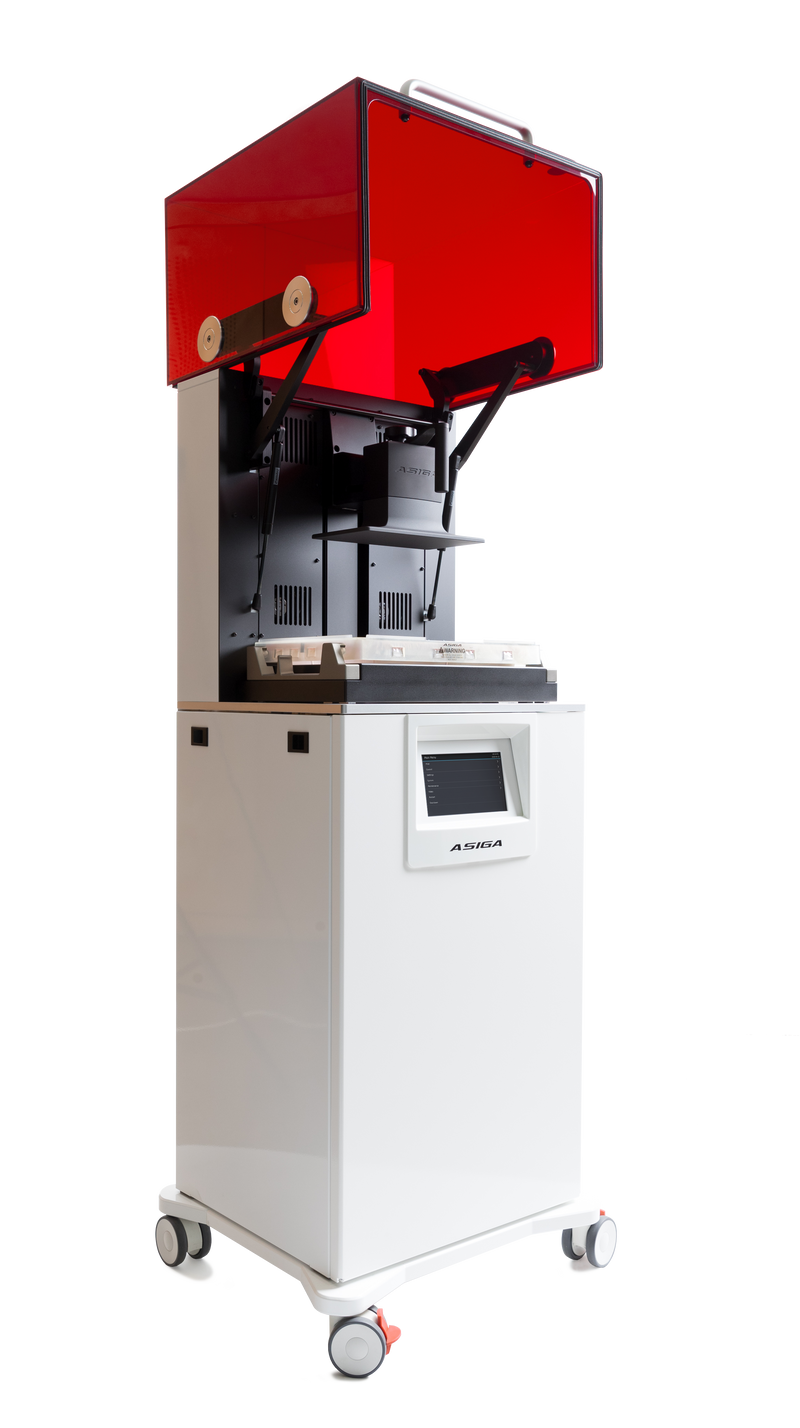

Asiga PRO 4K65 UV

Professional 3D printer
PRO 4K Series - Asiga

Technical specifications

Technical specifications
SpecificationPRO 4K45 UV$23,240.00Regular price $24,990.00PRO 4K65 UV (this product)$23,240.00Regular price $24,990.00PRO 4K80 UV$23,240.00Regular price $24,990.00
Build volume X, Y, Z122 × 69 × 200mm
4.8 × 2.71 × 7.87 inches		176 × 99 × 200mm
6.94 × 3.9 × 7.87 inches		217 × 122 × 200mm
8.54 × 4.8 × 7.87 inches
Pixel Size - 4K mode32µm46µm56µm
Pixel Size - Native Mode45µm65µm80µm
TechnologyDLP
LED Wavelength385nm (high power LED)
(Available in 405nm, longer lead times expected for 405nm option. Email info@phoenix-3d.com for more info)
Transparent Mode™Available on 385nm printers only
Material CompatibilityAsiga materials, 100% Open Material System — use any suitable third party material
SoftwareAsiga Composer software. Lifetime updates included
File InputsSTL, SLC, PLY, STM (Asiga Stomp file format)
Network CompatibilityWifi, Wireless Direct, Ethernet
Power Requirements90-264VAC, 50/60Hz, 600Watts, (100V - 6Amp Max. 240V - 2.5Amp)
System Sizing465 × 540 × 1345mm / 140 kg   18.3 × 21.3 × 53.0 inches / 309 lb
Packed Sizing900 × 700 × 1540mm / 205 kg   35.4 × 27.6 × 60.6 inches / 452 lb
Warranty12 months manufacturer's warranty

What's included

Included with your PRO 4K65 UV is everything you need to get started.

  • PRO 4K65 UV 3D printer
  • Calibration toolkit
  • Material of your choice1kg of Asiga or Phoenix 3D material.
  • Build tray
  • Asiga Flash curing chamber
  • Composer software
  • Unlimited lifetime technical support

PRO 4K Consumables

$130.00 - $130.00
$130.00
$130.00 - $130.00
$130.00

5L PRO 4K Low Force™ Build Tray - Asiga

PRO 4K Build Tray 5L ORDER WITH PRO 4K ONLY May require an additional 2 week shipping handling time.

$130.00 - $130.00
$130.00
$130.00 - $130.00
$130.00
$130.00 - $130.00
$130.00
$130.00 - $130.00
$130.00

5L PRO 4K Endurance™ Build Tray - Asiga

5L PRO 4K Endurance™ Build Tray Compatible with the PRO 4K only. May require an additional 2 week shipping handling time.

$130.00 - $130.00
$130.00
$130.00 - $130.00
$130.00
$105.00 - $105.00
$105.00
$105.00 - $105.00
$105.00

2L PRO 4K UltraGLOSS™ Build Tray - Asiga

PRO 4K Build Tray 2L - UltraGLOSS™ Print parts with a Gloss / pre-polished surface finish. Compatible with all 3D printers in the PRO 4K series. Ma...

View full details
$105.00 - $105.00
$105.00
$105.00 - $105.00
$105.00
$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00

2L PRO 4K Low Force™ Build Tray - Asiga

PRO 4K Build Tray 2L ORDER WITH PRO 4K ONLY May require an additional 2 week shipping handling time.

$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00

2L PRO 4K Endurance™ Build Tray - Asiga

2L PRO 4K Endurance™ Build Tray Compatible with the PRO 4K only. May require an additional 2 week shipping handling time.

$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00
Shop All PRO 4K Consumables
