Delivery time

May require an additional 2 week handling time.

Ultra (50) - Asiga

by Asiga
$16,500.00 - $16,500.00
$16,500.00
$15,250.00
$15,250.00 - $15,250.00
$15,250.00

Active Layer Monitoring

Asiga’s pioneering Smart Positioning System (SPS™) achieves precise layer thickness control of each and every layer, ensuring optimal print accuracy and speed.

4K Imaging Resolution

The latest high resolution imaging chipset delivers extraordinary resolution over a large build envelope.

Auto-Calibrating UV LED

Combining the latest generation of high-power ultraviolet solid-state light sources with an integrated radiometer ensures years of consistent printing performance.

385nm LED as standard.

DLP Micromirror Technology

Achieve the highest standard of reliability with the broadest wavelength capability of any imaging technology.


Ultra Brochure: Asiga-Ultra.pdf
Ultra Series - Asiga

Technical specifications

Technical specifications
SpecificationUltra (50) (this product)Ultra (32)
Build volume X, Y, Z189 x 106 x 130mm
7.44 × 4.17 × 5.11 inches		119 x 67 x 130mm
4.68 × 2.63 × 5.11 inches
Pixel resolution50µm32 μm
TechnologyDLP
Auto-calibrating UV LED385nm
SoftwareAsiga Composer software. Lifetime updates included
File InputsSTL, SLC, PLY, STM (Asiga Stomp file format)
Network CompatibilityWifi, Wireless Direct, Ethernet
Power Requirements100V ~ <5.0A
240V ~ <2.1A
50/60Hz
System Sizing353 x 441 x 555mm | Weight 32.5Kg .. 13.9 x x 17.3 x 21.8 inches | Weight 71.5 Lbs
Packed Sizing485 × 615 × 799mm | Weight 44 Kg .. 19 × 24.21 × 31.45 inches | Weight 97 Lbs
Warranty12 months manufacturer's warranty

What's included

Included with your Ultra (50) is everything you need to get started.

  • Ultra (50) 3D printer
  • Calibration toolkit
  • Material of your choice1kg of Asiga or Phoenix 3D material.
  • Build tray
  • Asiga Flash curing chamber
  • Composer software
  • Unlimited lifetime technical support

Ultra Series Consumables

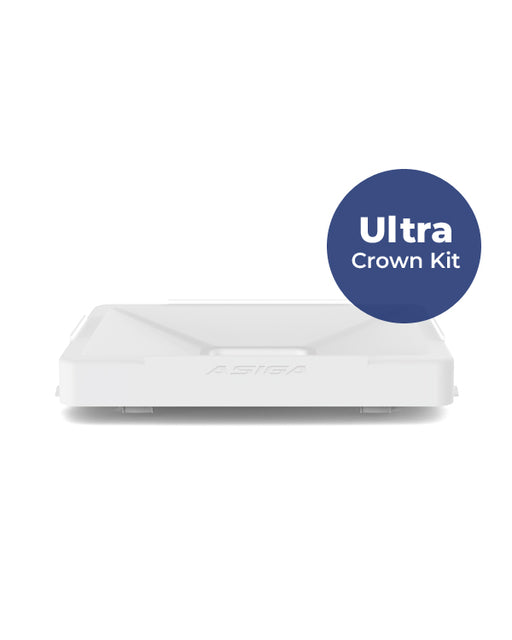

A front view of the Ultra Crown Kit, against a white background.
$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00

Ultra Crown Kit Build Tray - Asiga

Ultra Crown Kit Build Tray This tray can only be used in conjunction with the Ultra Crown Kit Build Platform. Compatible with all Ultra 3D printers...

View full details
$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00

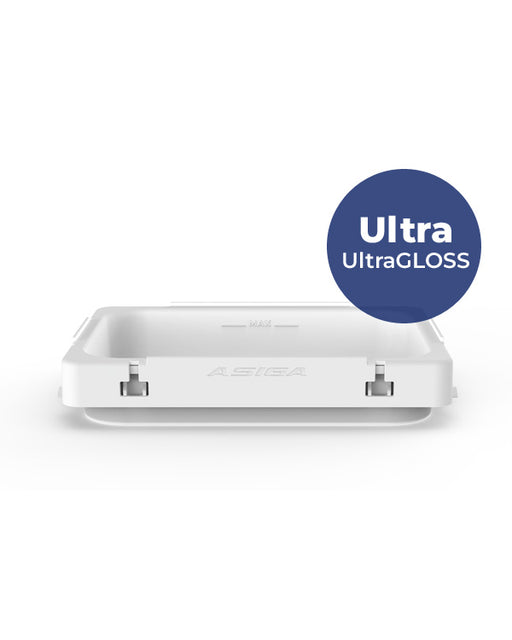

A front view of the Ultra UltraGLOSS build tray resin tray, against a white background.
$105.00 - $105.00
$105.00
$105.00 - $105.00
$105.00

2L Ultra UltraGLOSS™ Build Tray - Asiga

Ultra Build Tray 2L - UltraGloss™ Compatible only with the Ultra series PN: 07422 May require an additional 2 week shipping handling time.

$105.00 - $105.00
$105.00
$105.00 - $105.00
$105.00

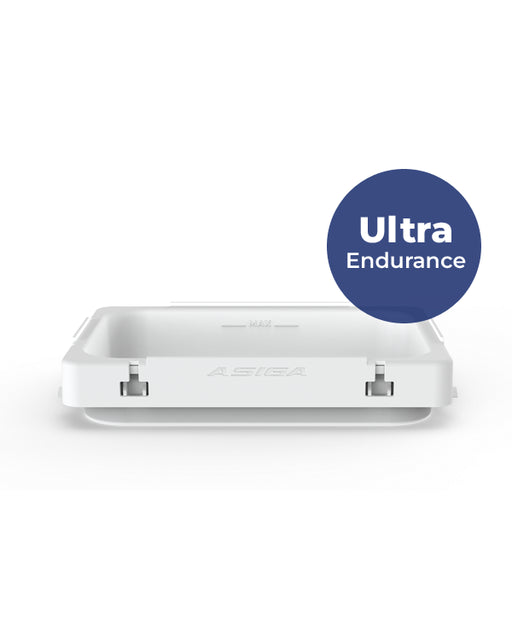

A white ASIGA Ultra Endurance Build Tray resin tank with a blue circular badge overlay reading 'Ultra Endurance' on a white background.
$130.00 - $130.00
$130.00
$130.00 - $130.00
$130.00

5L ULTRA Endurance™ Build Tray - Asiga

5L Ultra Endurance™ Build Tray Compatible with all Asiga Ultra series 3D printers. May require an additional 2 week shipping handling time.

$130.00 - $130.00
$130.00
$130.00 - $130.00
$130.00
A white ASIGA Ultra Endurance Build Tray resin tank with a blue circular badge overlay reading 'Ultra Endurance' on a white background.
$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00

2L ULTRA Endurance™ Build Tray - Asiga

2L Ultra Endurance™ Build Tray Compatible with all Asiga Ultra series 3D printers. May require an additional 2 week shipping handling time.

$85.00 - $85.00
$85.00
$85.00 - $85.00
$85.00
